Mini Xlr Wiring Diagram : Xlr Connector Wikipedia / Xlr to 1 4 mono plug the most comon way to wire a 3 pin xlr to a 1 4 inch 6 5mm mono plug sometimes called a jack plug is to join the negative and shield together.. Xlr to 1/4 inch mono wiring diagram. Diy audio electronics from zynsonix com balanced xlr to rca cable in wiring diagram how to wire an xlr two rca connectors 3 pin mini xlr wiring diagram solutions lovely xlr wiring diagram male pin 4. Xlr to 14 trs connector wired for balanced mono the usual way to connect a 3 pin xlr to a 14 trs aka stereo jack plug is to use the following pin allocation. If you use a bright light and look at the female connector (ta4f) used for the cable, you will see numbers next to each hole. Check out these specialized audio cables for film production.
These tiny little solder tabs require care to solder to and see the numbers associated with each pin. The uninsulated ground wire should go to pin 1 the red wire to pin 2 and the black wire to pin 3. 5 pin & 3 pin xlr wiring pinout information. Diy audio electronics from zynsonix com balanced xlr to rca cable in wiring diagram how to wire an xlr two rca connectors 3 pin mini xlr wiring diagram solutions lovely xlr wiring diagram male pin 4. Sennheiser xlr to mini cable wiring diagram.
The pictorial shows the pin layout of a ta4f connector, as viewed from the wiring side. (the rear view is the end you solder from) here are the connections on each pin: Choose hardwired option for p48. When connecting a 3 pin xlr to one rca you use the same wiring as if you were connecting an xlr to a 14 jack plug. Xlr to 14 trs connector wired for balanced mono the usual way to connect a 3 pin xlr to a 14 trs aka stereo jack plug is to use the following pin allocation. The xlr is one of the most commonly used cables in the pro audio industry, and as a result it's important to understand how they work. Xlr pinout (balanced) a balanced system is used in pro audio systems (xlr wiring diagram shown below), with an overall screen covering a twisted pair. Since each driver only needs a signal and ground, and each mini xlr has four pins, the pins are shorted so that the signal uses pins 1 and 4 and the ground uses 2 and 3, as seen in the below diagram.

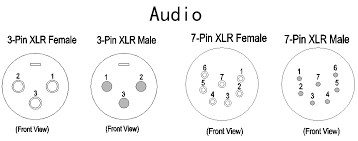

The above diagram shows you the pin numbering for both male and female xlr connectors, from the front and the rear view.
These tiny little solder tabs require care to solder to and see the numbers associated with each pin. 3 pin xlr connectors are standard amongst line level and mic level audio applications. Each part should be set and connected with different parts in specific manner. 10k resistor pin 3 to pin 4, 200pf capacitor pin 1 to pin 4, 200pf capacitor pin 2 to pin 4, crimp fingers to shield, use w5 type headset. Bridging 1&4 for signal, 2&3 for ground) 2. (the rear view is the end you solder from) here are the connections on each pin: 5 pin & 3 pin xlr wiring pinout information. Here is a wiring diagram showing three resistors providing this passive mixer circuit. You'll also discover each xlr pin's polarity. The mini xlr has become quite popular in the headphone market as it is relatively small, it locks in place, and the connections are more reliable than your average trs. I have wired some mini trs to xlr male cable,(cl) to plug receivers into sennheiser manual, and everything is working fine and sounds ok. 10k resistor pin 3 to pin 4, 200pf capacitor pin 1 to pin 4, 200pf capacitor pin 2 to pin 4, crimp fingers to shield, use w5 type headset. Visit the post for more.
The plastic pieces holding the headband in place have small indents where the wire enters and exits (red circle below). Mx 3 pin 4 pin & 5 pin mini xlr type connector is a type of connector used for many professional audio applications. Click refresh to reload complete large pictures. Here is a wiring diagram showing three resistors providing this passive mixer circuit. If you use a bright light and look at the female connector (ta4f) used for.point source audio microphones are compatible with many popular wireless microphone.
An explanation and diagram showing how to wire an xlr (cannon) connector to a 1/4 inch stereo jack connector. Some manufacturers, especially in vintage equipment, do not follow this standard and instead reverse the polarity of pin 2 and 3. 3 pin xlr wiring standard. In addition, it may be helpful to label the wires prior to disassembly. These tiny little solder tabs require care to solder to and see the numbers associated with each pin. Xlr to inch stereo jack plug. K712 and other k701 derivatives like the quincy jones q701. Xlr to 1/4 trs connector (wired for balanced mono).
How to wire an xlr connector (balanced) a balanced system is used in pro audio with an overall screen covering a twisted pair.
Collection of xlr wiring diagram pdf. 30.08.2018 30.08.2018 0 comments on sennheiser xlr to mini cable wiring diagram. K712 and other k701 derivatives like the quincy jones q701. 5 pin & 3 pin xlr wiring pinout information. Diy audio electronics from zynsonix com balanced xlr to rca cable in wiring diagram how to wire an xlr two rca connectors 3 pin mini xlr wiring diagram solutions lovely xlr wiring diagram male pin 4. Collaborative flowcharts, wireframes, mind maps and sticky notes. Some manufacturers, especially in vintage equipment, do not follow this standard and instead reverse the polarity of pin 2 and 3. Check out these specialized audio cables for film production. 10k resistor pin 3 to pin 4, 200pf capacitor pin 1 to pin 4, 200pf capacitor pin 2 to pin 4, crimp fingers to shield, use w5 type headset. In addition, it may be helpful to label the wires prior to disassembly. When connecting a 3 pin xlr to one rca you use the same wiring as if you were connecting an xlr to a 14 jack plug. Sennheiser xlr to mini cable wiring diagram : 3 pin xlr wiring standard.

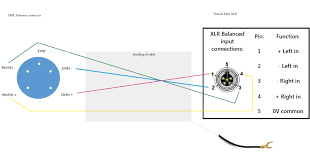

An explanation and diagram showing how to wire an xlr (cannon) connector to a 1/4 inch this wiring configuration gives you a balanced mono audio cable.3 5mm stereo to xlr wiring. The adapter cable on top is for connecting to an amplifier's speaker out terminals. Sennheiser xlr to mini cable wiring diagram : The mini xlr has become quite popular in the headphone market as it is relatively small, it locks in place, and the connections are more reliable than your average trs. Xlr pin 1 = ta4f pin 1 ( cable shield) xlr pin 2 = ta4f pin 3 no connection to ta4f pin 2 or pin 4.
If you use a bright light and look at the female connector (ta4f) used for.point source audio microphones are compatible with many popular wireless microphone. Mx xlr adapters do not suffer from inse. Choose hardwired option for p48. Visit the post for more. Sennheiser xlr to mini cable wiring diagram. It would be extremely dangerous. Xlr to 1/4 trs connector (wired for balanced mono). The plastic pieces holding the headband in place have small indents where the wire enters and exits (red circle below).
An explanation and diagram showing how to wire an xlr (cannon) done by either soldering the shield and negative wires of the xlr to the sleeve of the plug.
The adapter cable on top is for connecting to an amplifier's speaker out terminals. Pin 2 on the xlr is 'hot' and carries the positive going signal, whilst pin 3 is 'cold' and provides the return. 5 pin & 3 pin xlr wiring pinout information. Xlr to 1/4 trs connector (wired for balanced mono). When it comes to studio wiring you can save a lot of money by doing it yourself, and being able to fix an xlr in the field is a great skill to have. Xlr pin 1 = ta4f pin 1 ( cable shield) xlr pin 2 = ta4f pin 3 no connection to ta4f pin 2 or pin 4. The pictorial shows the pin layout of a ta4f connector, as viewed from the wiring side. Xlr to inch stereo jack plug. (the rear view is the end you solder from) here are the connections on each pin: The uninsulated ground wire should go to pin 1 the red wire to pin 2 and the black wire to pin 3. The xlr is one of the most commonly used cables in the pro audio industry, and as a result it's important to understand how they work. How to wire an xlr connector (balanced) a balanced system is used in pro audio with an overall screen covering a twisted pair. Here is a wiring diagram showing three resistors providing this passive mixer circuit.
